Nose cones

So why was my gearbox being pushed back? after a little detective work, it seems that with any early bus, ie before 59 that issues can arise with the front nose cone and mounting bracket for this area when installing a later gearbox.

check out the difference in these diagrams

below is early type (pre 1959/60 or up to chassis number 469505

 below is the later from chassis number 469506

It was pretty easy to find an adapter / front mount, this is what I found first from Type 2 detectives.

 "Heavy duty solid front gearbox mount for pre 1960 bus" link here

66.00

Then I found this from buttys bits

28.00

But although both of these mounts seem thinner then my set up just now, they still have issues with pushing out the box a bit, plus these are hard mounted meaning - possible vibration and for sure all that gearbox whirring will be passed through the nose cone and into the rear frame of the bus...

also whats going to happen when lining up the shift rod? issues I can see arising there too...

I kept looking around,  checking out the standard mounts and differences and searching forums for similar problems, I found some and sussed out that replacing what I have with a hard mount like those above was infact going to be a step in the wrong direction for our bus build.

and then I came across the following two mounts which is what I was looking for, the first I had seen before but couldn't remember where ... maybe in a past issue of Volksworld magazine.

Wagenwest in the USA of course !

 I also came across this one from Concept 1 in Canada

So the Wagenwest answer to the problem is the one I went for, the description says it all and because I have just had a brand new nose cone fitted, so do not really need to be buy another modified version (as in the concept 1 solution) .

If I had seen the concept 1 solution before I had the gearbox overhauled I probably would have chosen it -  I managed to ordered this via wagenwest website very quickly this morning before work - looking forward to it receiving it and getting on with the install.

Wagen west´s discription :

"Pre 59 bus nose cone adapter kit"

"This kit makes it so you can install a tunnel case transmission into your early bus, 1959 and down.
This adapter will not push your transmission back, like the other adapters on the market !!!!!!!!
Made with Polyurethane to help insulate the transmission from the bus, this helps keep the noise down in the cab and cargo area.
Kit comes with one Wagenswest lollipop mount and retainer plate.
This Lollipop is a simple solution to an age old problem.
Your type II nose cone will need to be trimmed to fit, like the photo in this add  "

This does leave bit of a dilemma for me though - what do I do with the bus while I wait for it to come here?

 I think I need to get the bus off the ramp as its stuck there until I can get the rear and front suspension on and I don't want to hog peka´s car ramp....
two options as I see it,  Take my wheel Dolley´s over and see if I can sit the bus on these, then at least we can move the bus from the ramp and Peka can use it, also it might mean that peka can get the shell into the paint booth ?

or take away the front mount now and install the box, axle arms, spring plates etc and loosly fit everything just for transpotation around the work shop, maybe I can wedge the front nose cone into place, or use the set up I have now but not bolted up?

Find out on Thursday which is when I can next get over to the bus.

One of those days

After a day sick on Friday I was surprised to feel much better on Saturday morning- so with no time to waste I met up with peka at the garage
 he was already there - rebuilding his BBQ

The first thing peka told me when I came in was that he had flipped the front mount, just as I had thought to do and written on my last blog post ! So it was now in -
cool!

I then set about the steering pin install, so I started to ream the front beam steering pin bushes,
First I used the tool from Rainier, I gave it a few passes but the pin still would nt slide right up and in?

So Peka lent me his calipers and we measured the pin and then while he looked for his reamer, I looked for the ones I had, turns out I had an adjustable one left by my brother when he had to do his on his slamdamaticbarndoor - Anyway I adjusted this up and gave it a pass, got to say it didn't feel so good, soon I found out that I had taken a bit too much off, now the pin fits but not as snug as i would have liked, not too bad either, Will see how this feels when its greased up and fully assembled.

So after cleaning up the tools, I headed to the back end of the bus to carry on installing the rear suspension parts, Happy with thr axles, so now I looked at fitting the spring plates and maybe even getting the axles bolted to them, however it was soon apparent that things were not lining up like they should do, The rear cradle mounts on the gearbox were out, and so I very carefully tightened up and  bolted up what I could, being carefull of the order in which doing so, but soon I realized that the rear mount was out, at first i thought simply to adapt the mount but after leaving the garage and giving it more thought and a little looking into on the net I came to the conclusion that the nose cone mount could be better....



 Its something left from Dicks set up (former owner), so I called Dick and asked him a few questions, and he told me that he did a lot of swearing when he was installing the rear parts, I didn't tell him that I have replaced it all, not the right thing to say after that comment : ) He also said he had found the old rear window glass, nice! and that i had better go by his some time to pick up the stuff.

 This whole re work of the back end all started when I realized his set up had issues with tire clearance to spring plate and the fact that the old spring plates are "old school" cut up originals that I didnt fancy rolling on, his set up was linked with a bus boys type set up using spacers and short axles and early type 3 hubs, all this was not really ideal for me and it was of course none adjustable meaning wheel removal would be a hassle to say the least, so it wasn't a too difficult decision to sort it out....

The result is the replacing everything, but of course up until now not the nose cone mount !!! yep it looks like I need a different mount too, id over looked this and just thought that it would work seems the one I have from Dicks set up pushes out the box,  it could be a reason why the frame horn bolts had been stripped a bit?



I have now looked around and seen one that should work from ....T2D

 it looks as though it will draw the whole gearbox 10- 15 mm nearer the front of the bus - this would mean all the other bolts line up where they should in relation, instead of pushing the box back in the bus as it is now - sorted, I hope.

So I need to call Paul in the morning and see what he says? and if he can get a gearbox nose cone mount shipped out to me ASAP, a good time to check in on the whereabouts of my front wheel bearings too.

not lined up...

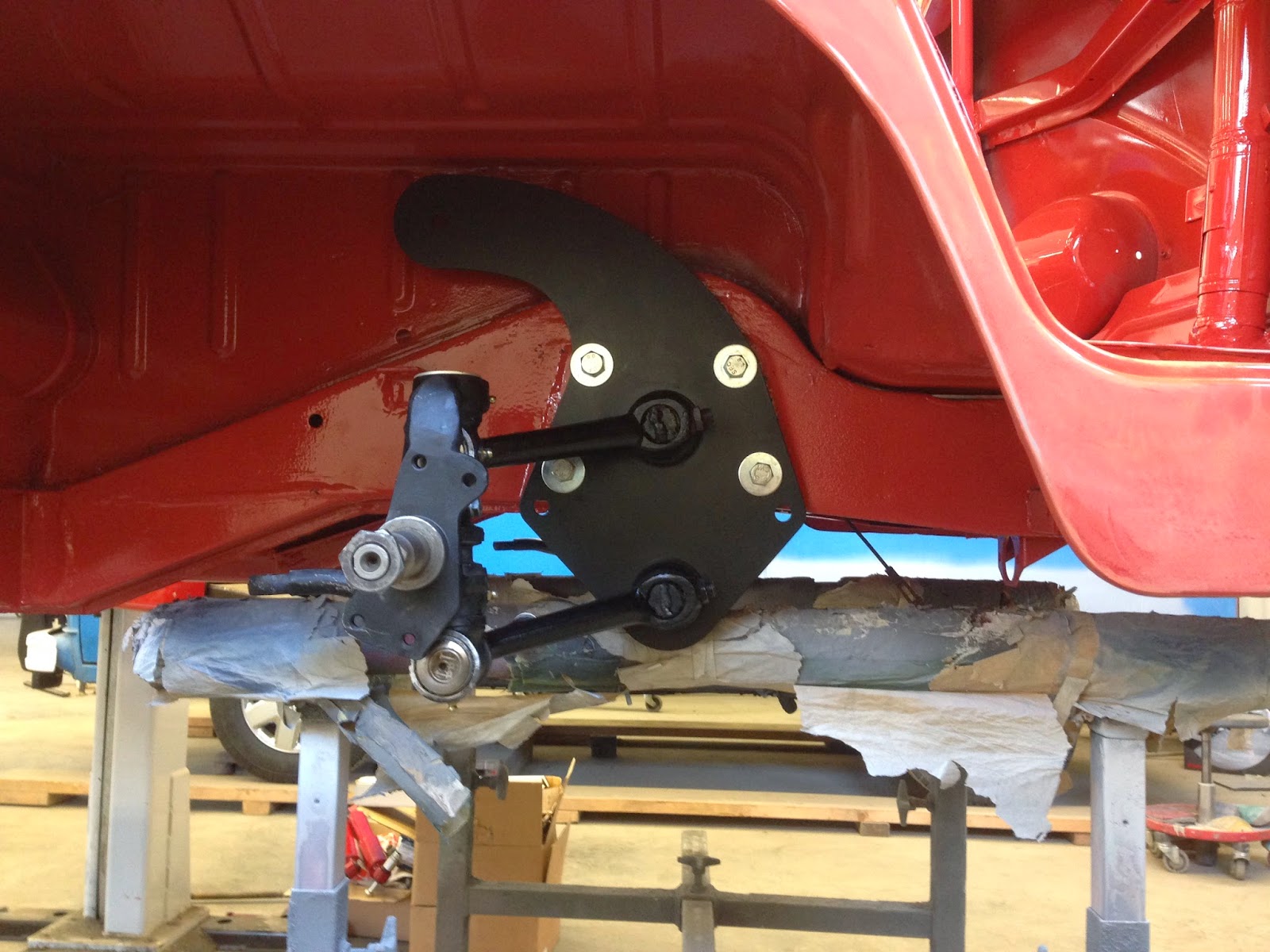

new t2d spring plates

Other stuff that's been happening, Victor just came by with his super nice fasty... got me thinking about air jackers

Nearly in

Noticed that if I flip the front nose cone mount that it might get the 5 mm I'm looking for to line up the nose cone with the bolts and gear shift rod tube.

Gasket making and nose cone clearance

After many trial fits and having to make another gasket to shim I'm finally happy with the clearance of the axle tubes to gearbox .

run the new tap through and cleaned up the threads, now the new bolts run perfect.

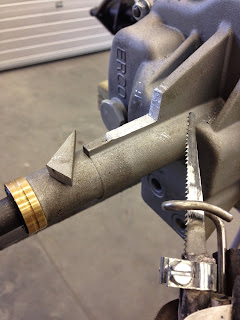

removing Aluminium from the nose cone for needed clearence

Bearings and bolts.

First up Paul at type 2 detectives got straight back to me regarding the missing front wheel bearings - these are hopefully on there way from csp Germany right now.

I went to Rainier´s after work, drank some coffee and dissed modern cars ; )
